Reduce basic-training consumption
Move repeated starting, shifting and parking practice to the simulator to reduce fuel use and wear on tyres and drivetrain components.
Simulator products / YSL-CAR-C34-A-5DOF

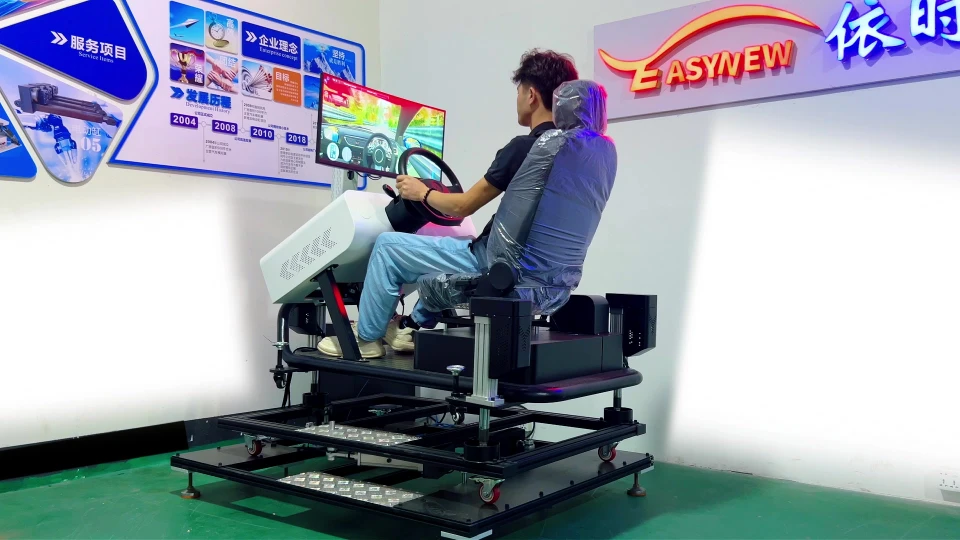

5DOF Automatic Car Driving Simulator
A passenger-car training system for driving schools, vocational colleges and professional trainers, combining automatic controls with five-degree-of-freedom motion feedback.
Practise basic, repetitive and higher-risk tasks in a controlled virtual environment before training in a real vehicle.
Display system34-inch curved display
Vehicle classCar / passenger vehicle
Gear selectionAutomatic transmission
Driving layoutRHD; LHD customisable
Product formDynamic · 5DOF
Production lead timeApprox. 2–3 weeks after payment
01
APPLICATIONS & VALUE
A safe, repeatable practice environment before real-vehicle training.
Driving schoolsVocational and transport collegesTransport operatorsTraffic and emergency training
Train indoors, independent of weather
Learn the controls and training procedures indoors, easing demand on training vehicles and outdoor facilities.
Prepare learners before real driving
Let beginners learn steering, pedals and gear logic before moving to a real vehicle.
Support consistent instruction
Support consistent basic teaching for transport operators and colleges; vehicle types, scoring and reports depend on the delivered software.
Complex roads and weather
Practise urban, motorway and mountain driving in rain, snow, fog and at night, supplementing conditions that are difficult to arrange consistently in real training.
Hazard and emergency training
Use simulated brake failures, fatigue and unexpected events to practise hazard recognition and appropriate responses.
Induction and refresher training
Support staged driving-school lessons, new-driver orientation and refresher training for working drivers.
Flexible training schedules
Reduce dependence on outdoor facilities, weather and vehicle schedules to keep basic lessons running regularly.
Five-degree-of-freedom motion feedback
Heave, pitch, roll, surge and yaw provide five-degree-of-freedom feedback alongside the driving visuals.
02
Standard configuration
Automatic controls with a 5DOF platform.
- Right-hand-drive cockpit and adjustable seatStandard equipment × 1
- Steering systemStandard equipment × 1
- Pedal assembly (brake and accelerator used for automatic training)Standard equipment × 1
- Automatic gear selectorStandard equipment × 1
- 34-inch curved visual displayStandard equipment × 1
- Simulation computerStandard equipment × 1
- Driving simulation softwareStandard equipment × 1
- Upper 3DOF platformStandard equipment × 1 set
- Lower two-axis platformStandard equipment × 1 set
Optional configurations
Left-hand drive, instruments, instructor workstation and VR can be configured by project. Standard equipment includes an upper 3DOF platform and lower two-axis platform, combining five degrees of freedom.
Two platform levels, five degrees of freedom
The upper 3DOF platform supports the cockpit; the lower two-axis platform adds longitudinal travel and yaw, forming a five-axis, five-degree-of-freedom driving system.
Upper level · 3DOF
Heave (vertical motion), pitch and roll.
Lower level · two axes
Longitudinal travel (forward / backward) and yaw rotation.
03
Equipment demonstrations
Automatic controls and dynamic driving.
See this model’s operation, software and motion platform. Click to load, then pause, seek or view full screen.
5DOF automatic simulator demonstration
1080p · approx. 1 min 24 sec
04
Driving simulation software
From basic controls to complex road scenarios.
Software is configured with the hardware, covering basic controls, manoeuvres, road driving, hazards, scoring and driving aids, with language and course adaptation available by market.
LHD / RHD
Matched left- / right-hand-drive hardware and software
The cockpit can be configured for left- or right-hand drive. The software viewpoint, instruments and control logic follow the selected layout to match physical and virtual driving positions.
- Left- or right-hand-drive cockpit
- Viewpoint matched to the hardware
- Coordinated instruments and control logic
Basic control training
Steering, gears, accelerator, brake, parking brake and lights practice.
Manoeuvring exercises
Automatic-compatible exercises include reverse and parallel parking, curves, right-angle turns, hill starts, narrow gates, manholes, uneven roads and single- or double-sided bridge exercises.
Road and weather environments
Town, city, motorway, mountain and gravel roads; night, rain, snow, fog and day/night changes, with corresponding weather effects.
Hazard and emergency training
Scenarios include alcohol and drug impairment, fatigue, speeding, brake failure, unexpected events, noise distraction, traffic direction and yielding to ambulances.
Scoring and training results
Detect red-light violations, lane crossings, collisions, speeding, unfastened belts, unreleased parking brakes and harsh acceleration or braking; record exercises, distance, fuel use, scores and errors.
Result storage and printing
Results can be saved locally and printed. Local file formats depend on the delivered software version.
Driver assistance
Single- or triple-screen support, dual mirrors on one screen, live pedal and gear indicators, mini-map and point-to-point navigation and route checks.
Languages and system extensions
One interface language is preinstalled: English, Arabic, Spanish, Romanian or Ukrainian, selected when ordering. The 5DOF platform is standard; VR and an instructor workstation are optional.
This page shows only a selection of software features and interfaces. Features may be added or modified in future software versions. The delivered software version and feature set are subject to the order confirmation.
Screens show shared driving software. Gear and pedal indicators and exercises for automatic transmission depend on the delivered version.
OPTIONAL SYSTEM
Instructor workstation interface
Monitor terminal status, assign tasks to one or several simulators and review learner results and errors. Functions and terminal capacity are confirmed by project.
Vehicle types, languages, display arrangements and extensions are confirmed with the order. Custom features, timescales and fees depend on project requirements.
05
REAL PRODUCT DETAILS
Real equipment and physical controls.
Click an image to view the original.

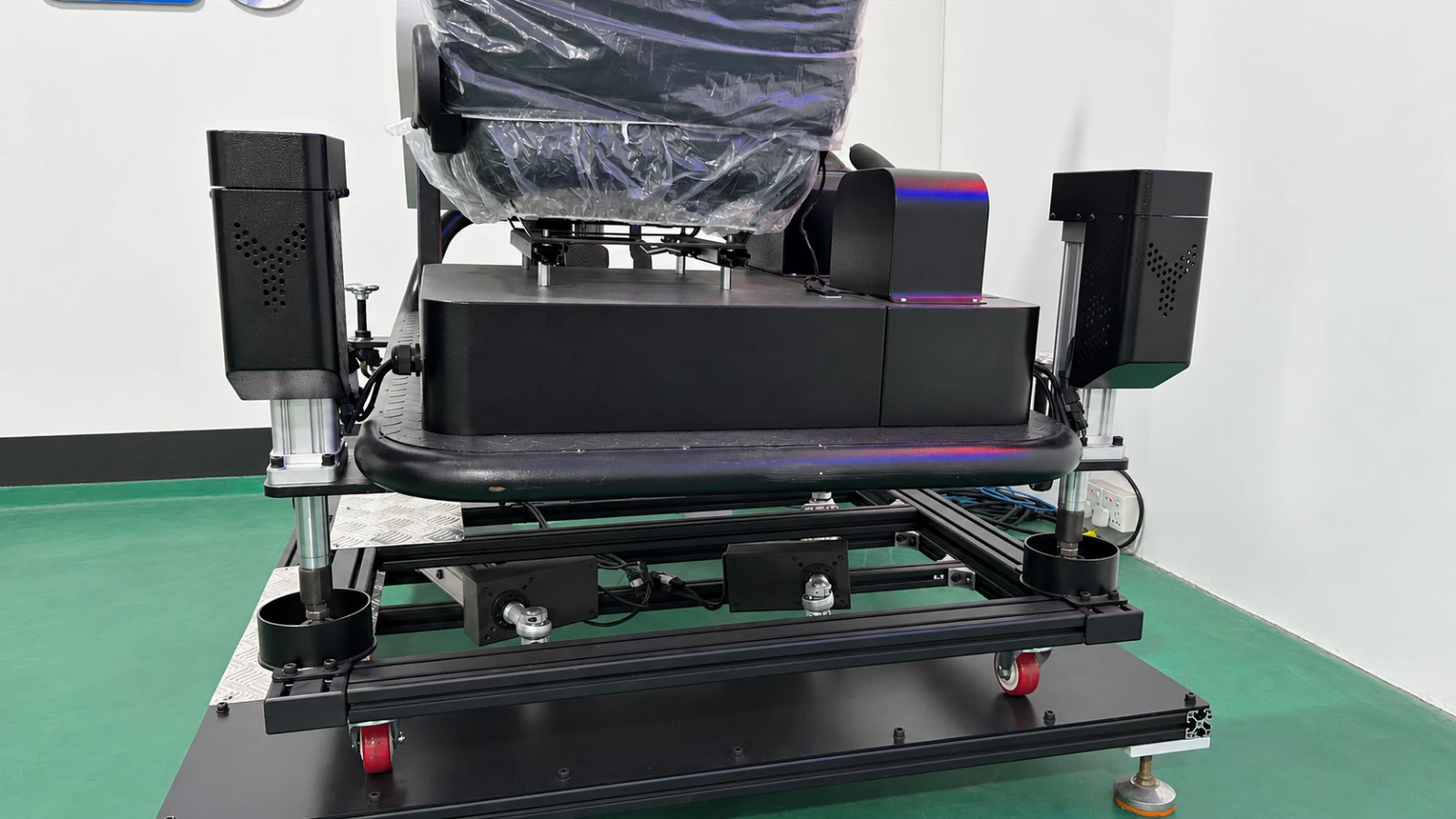

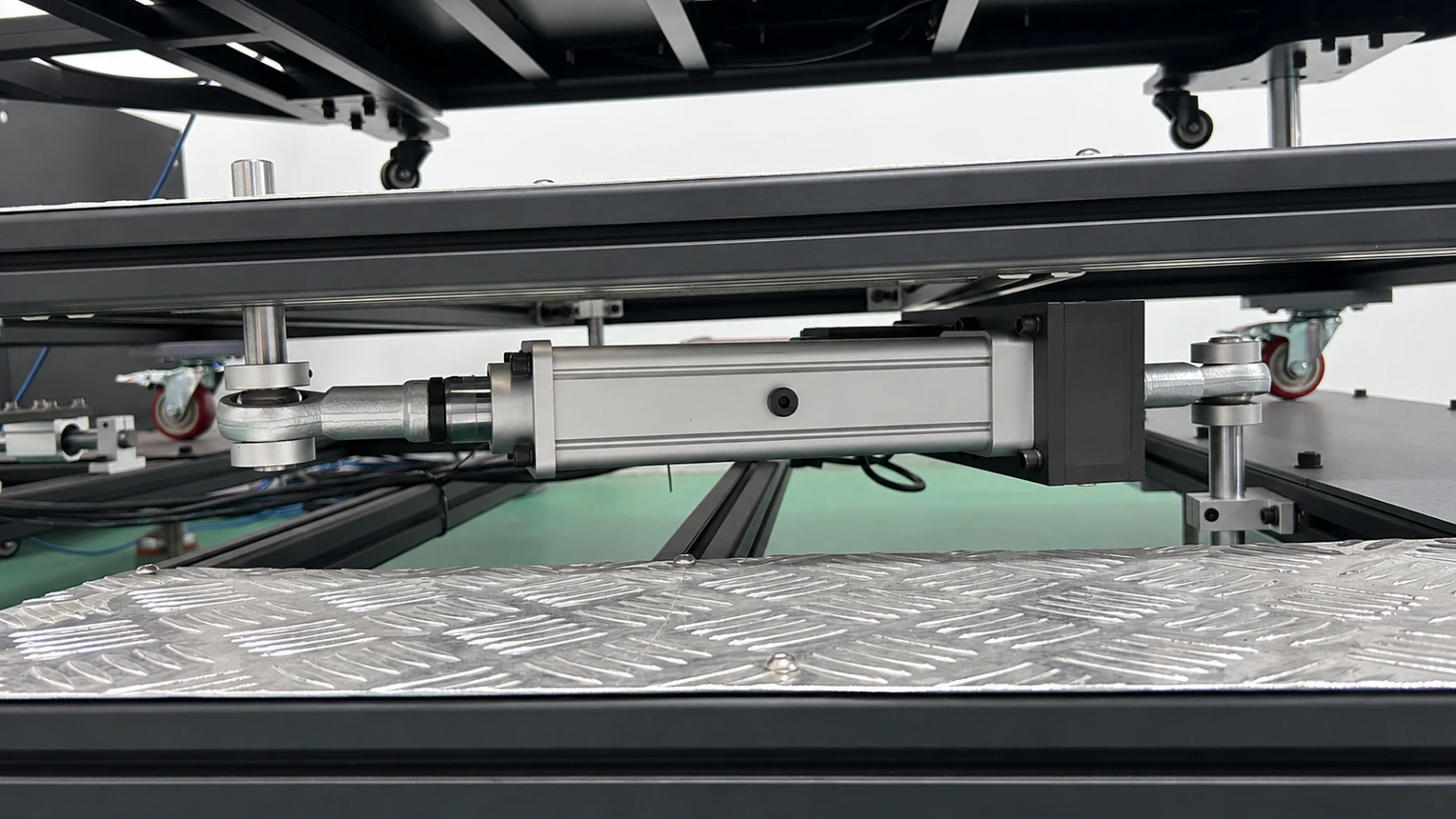

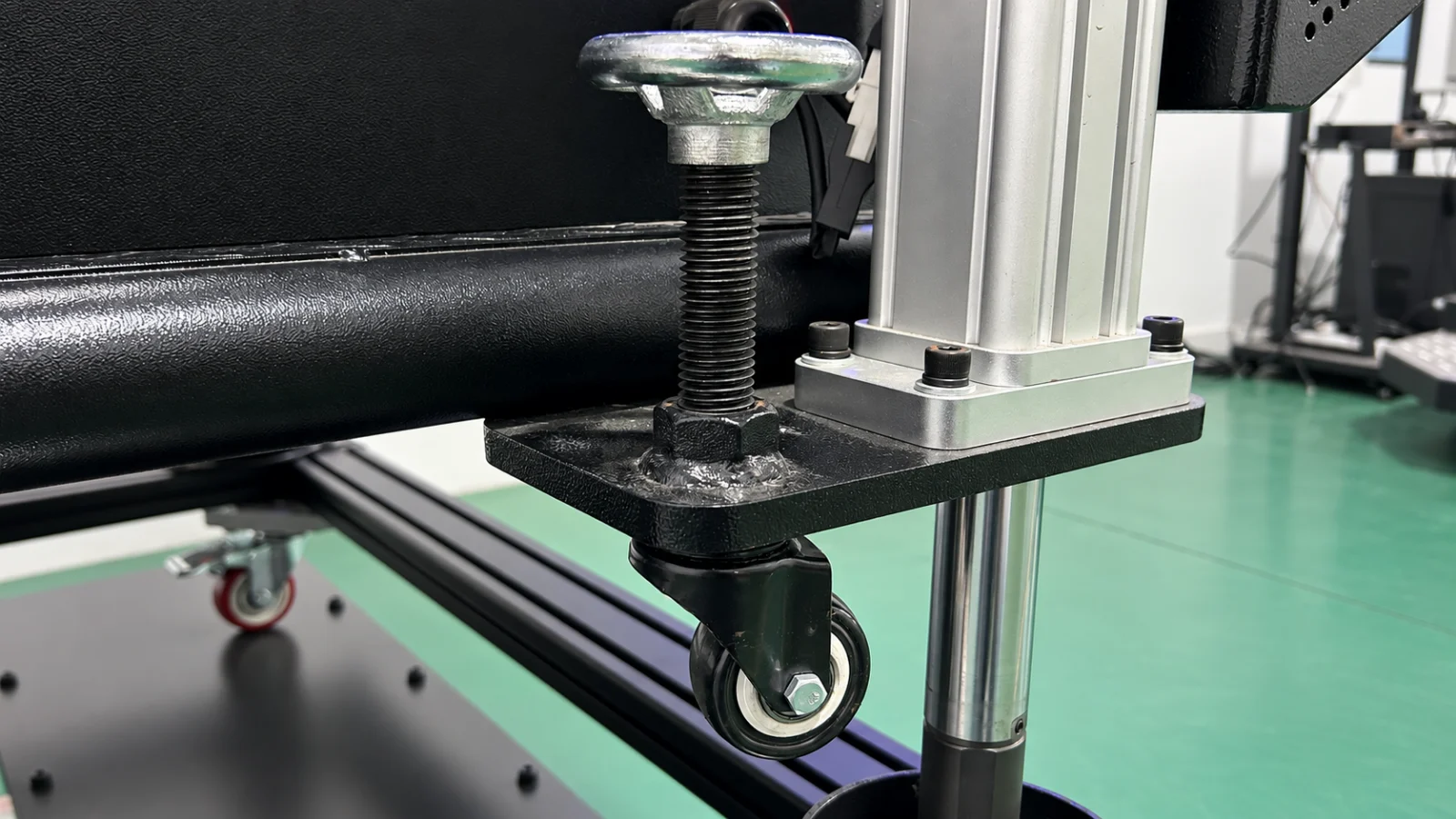

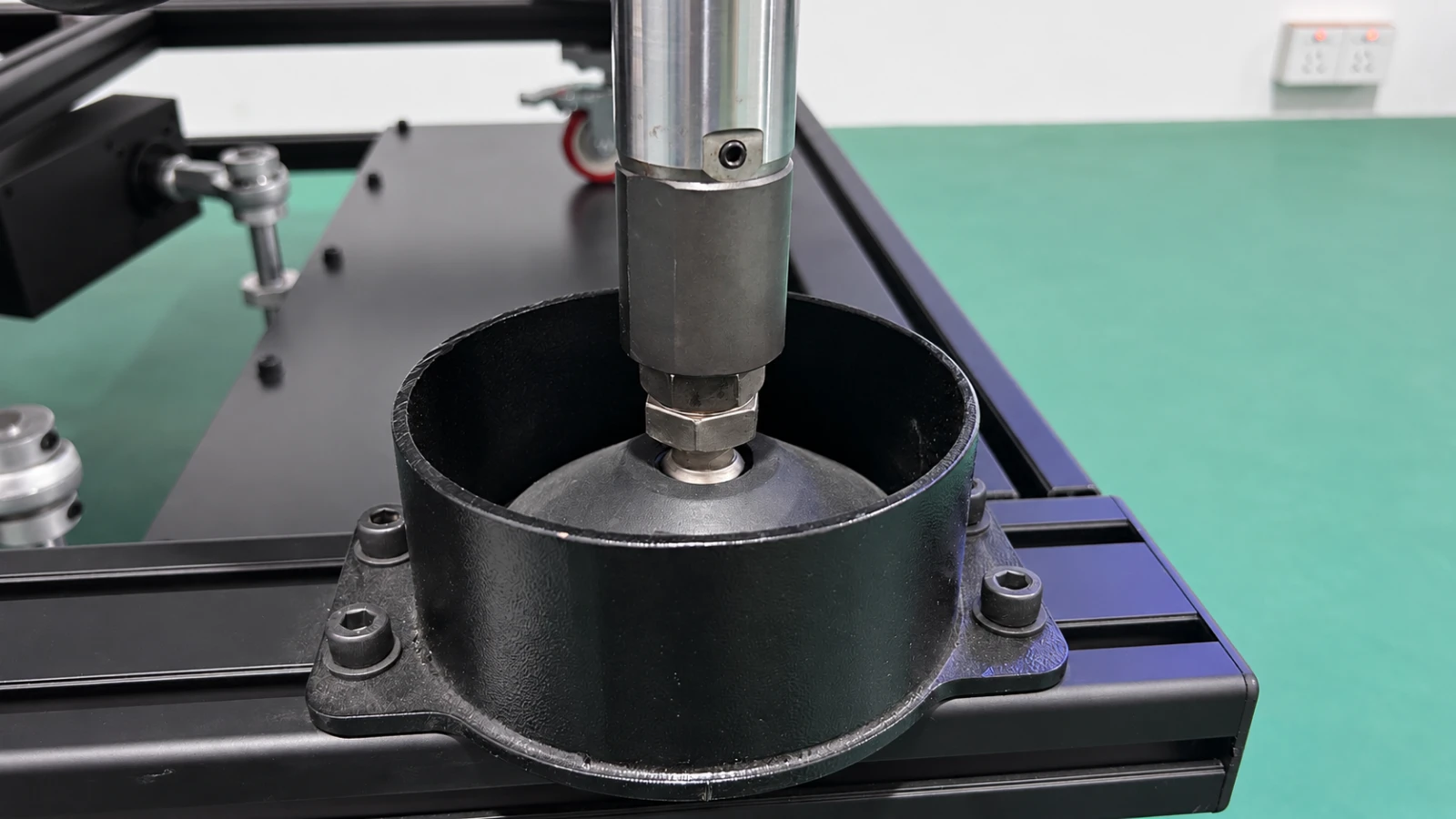

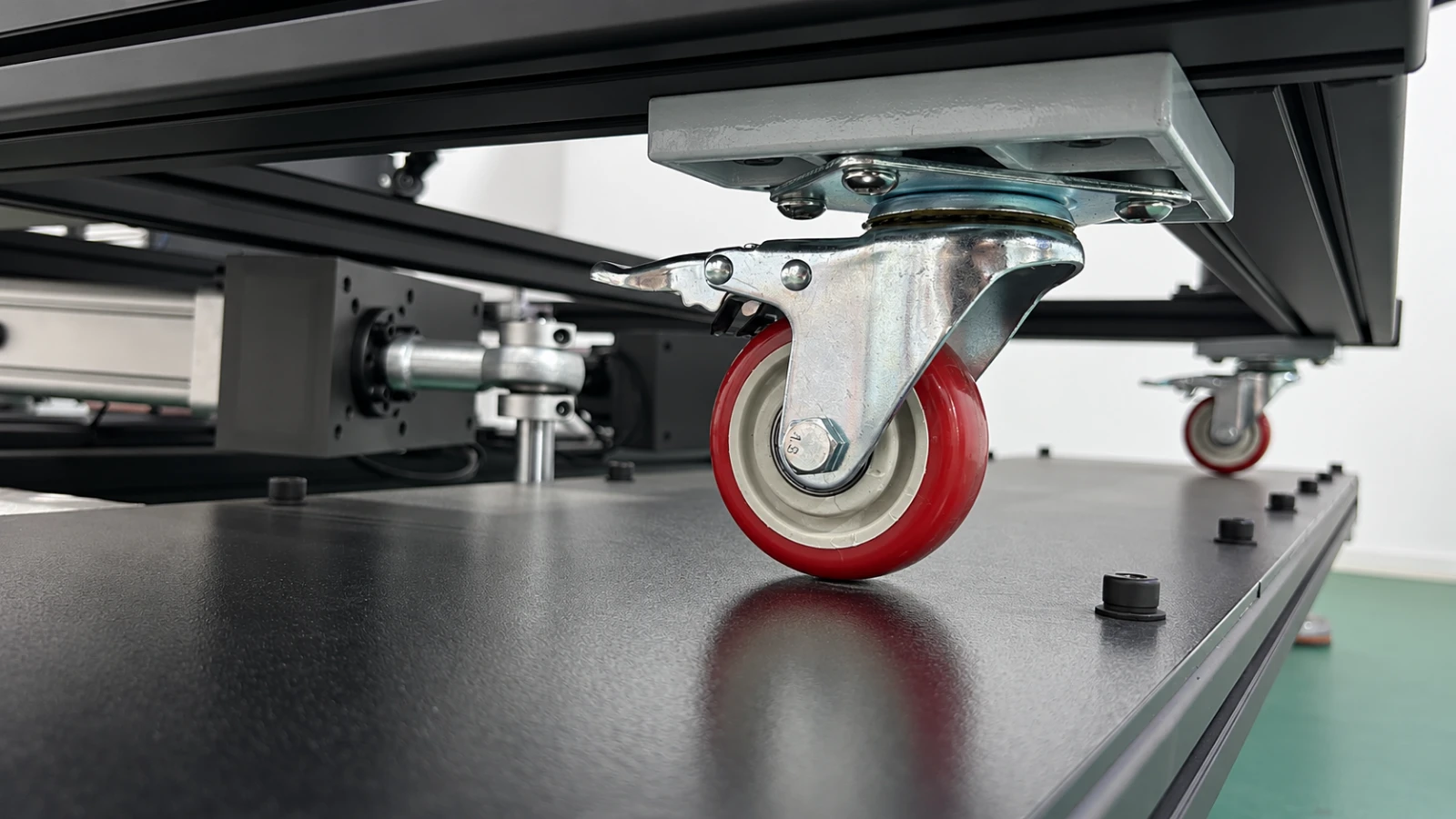

Combined 5DOF platform details
06
TECHNICAL DATA
YSL-CAR-C34-A-5DOF — Specifications and configuration
| Standard specificationsDefault delivery scope for this model | |
|---|---|
| Vehicle class | Car / passenger-vehicle driver training |
| Product form | Static:fixed base without motion feedback.Dynamic:A motion platform provides attitude and motion feedback; this model uses 5DOF. |
| Display system | 34-inch curved display |
| Standard colour | Black + white as photographed; other colours can be customised and confirmed with the order |
| Overall dimensions | Drawing envelope reference: length 1651.2 × width 1300 mm; top of display 1466.4 mm Tolerance: ±10 mm. Base length 1600 mm. Height is measured to the top of the display. |
| Net equipment weight | Approx. 285 kg |
| Packing dimensions / gross weight | Wooden crate: 1800 × 1400 × 1520 mm (L × W × H); gross weight approx. 450 kg; one crate |
| Power supply and maximum consumption | Standard input: AC 220 V (±10%), 50 Hz; maximum consumption 4.5 kW including upper 3DOF and lower two-axis platforms AC 110 V is available by project; voltage, frequency and final configuration are confirmed in the order specification. |
| Computer configuration | Intel Core i5-6500; Gigabyte H110M-S2PH; GTX 1660 6 GB; 8 GB RAM; 128 GB SSD Reference configuration. Brands or models may change with availability; replacements will provide equivalent or better performance, subject to the final order specification. |
| Pre-installed software language | One software interface language is preinstalled: English, Arabic, Spanish, Romanian or Ukrainian. Select the language at order confirmation. |
| Steering force feedback | DC motor force feedback as standard; servo motor force feedback optional |
| Steering wheel rotation | From centre: 540° left and 540° right (1.5 turns each); total rotation 1080° |
| Gear control | Automatic transmission Automatic transmission is standard; manual transmission can be requested. Confirm the gear configuration with sales when ordering. |
| Physical controls | Car steering wheel, pedal assembly, automatic selector, parking brake, ignition and combination switches Automatic training uses the brake and accelerator. Confirm the physical pedal assembly with the order. |
| Operating environment | 0–35 °C; 20%–80% RH, non-condensing |
| 5DOF motion specificationsUpper 3DOF + lower two axes | |
| Payload | 100 kg |
| Heave travel / speed | Upper heave: ±50 mm / 250 mm/s |
| Pitch angle / speed | Upper pitch: ±5° / 10°/s |
| Roll angle / speed | Upper roll: ±5° / 10°/s |
| Motion drive | Upper servo-driven electric actuators provide heave, pitch and roll. Lower electric actuators provide longitudinal travel and yaw. |
| Longitudinal travel / speed | Lower longitudinal travel: ±70 mm / 250 mm/s |
| Yaw angle / speed | Lower yaw: ±7° / 10°/s |
| Optional extensionsNot included as standard; confirmed by project | |
| Servo motor steering force feedbackOptional | Optional servo motor steering force feedback; the standard configuration uses a DC motor |
| VR headsetOptional | VR headset and display solutions available by project; models, software compatibility and scope are confirmed for the application |
| Instructor workstationOptional | Instructor workstation available by project; hardware, management functions and terminal capacity are confirmed for each order |
| Software customisationOptional | Software customisation available; features, lead time and cost are agreed for each project |
07
DELIVERY & SUPPORT
Production, export packing and remote support.
Production lead time
Usually about 2–3 weeks after payment, subject to the confirmed order and configuration.
Export packing
One export wooden crate per unit; see the specifications for packed dimensions and gross weight.
Factory testing
Software, hardware and overall operation are checked before dispatch.
Installation and training
A user manual is supplied. Remote installation guidance and operator training can be provided when required.
Warranty and upgrades
One-year hardware warranty. Standard new software features may be upgraded free of charge; confirm applicable conditions with sales.
Remote diagnostics
Remote troubleshooting assistance is available; overseas on-site service is not currently provided.
Product documentation
YSL-CAR-C34-A-5DOF
Download product information matching this page’s configuration, specifications and software description.
