Reduce basic-training consumption
Move repeated starting, shifting and parking practice to the simulator to reduce fuel use and wear on tyres and drivetrain components.
Simulator products / YSL-CAR-C34-A-3DOF
3DOF Automatic Car Driving Simulator
A passenger-car training system for driving schools, vocational colleges and professional trainers, combining automatic controls with three-degree-of-freedom motion feedback.
Practise basic, repetitive and higher-risk tasks in a controlled virtual environment before training in a real vehicle.
Display system34-inch curved display
Vehicle classCar / passenger vehicle
Gear selectionAutomatic transmission
Driving layoutRHD; LHD customisable
Product formDynamic · 3DOF
Production lead timeApprox. 2–3 weeks after payment
01
APPLICATIONS & VALUE
A safe, repeatable practice environment before real-vehicle training.
Driving schoolsVocational and transport collegesTransport operatorsTraffic and emergency training
Train indoors, independent of weather
Learn the controls and training procedures indoors, easing demand on training vehicles and outdoor facilities.
Prepare learners before real driving
Let beginners learn steering, pedals and gear logic before moving to a real vehicle.
Support consistent instruction
Support consistent basic teaching for transport operators and colleges; vehicle types, scoring and reports depend on the delivered software.
Complex roads and weather
Practise urban, motorway and mountain driving in rain, snow, fog and at night, supplementing conditions that are difficult to arrange consistently in real training.
Hazard and emergency training
Use simulated brake failures, fatigue and unexpected events to practise hazard recognition and appropriate responses.
Induction and refresher training
Support staged driving-school lessons, new-driver orientation and refresher training for working drivers.
Flexible training schedules
Reduce dependence on outdoor facilities, weather and vehicle schedules to keep basic lessons running regularly.
Three-degree-of-freedom motion feedback
Heave, pitch and roll provide attitude feedback alongside driving visuals for a dynamic driving experience.
02
Standard configuration
Automatic driving controls with a 3DOF platform.
- Right-hand-drive cockpit and adjustable seatStandard equipment × 1
- Steering systemStandard equipment × 1
- Pedal assembly (brake and accelerator used for automatic training)Standard equipment × 1
- Automatic gear selectorStandard equipment × 1
- 34-inch curved visual displayStandard equipment × 1
- Simulation computerStandard equipment × 1
- Driving simulation softwareStandard equipment × 1
- 3DOF motion platformStandard equipment × 1 set
Optional configurations
Left-hand drive, instruments, instructor workstation and VR can be configured by project. Scope is confirmed with the order. A 3DOF platform is standard on this model.
03
Equipment demonstrations
Automatic controls and dynamic driving.
See this model’s operation, software and motion platform. Click to load, then pause, seek or view full screen.
3DOF automatic simulator demonstration
1080p · approx. 1 min 55 sec
04
Driving simulation software
From basic controls to complex road scenarios.
Software is configured with the hardware, covering basic controls, manoeuvres, road driving, hazards, scoring and driving aids, with language and course adaptation available by market.
LHD / RHD
Matched left- / right-hand-drive hardware and software
The cockpit can be configured for left- or right-hand drive. The software viewpoint, instruments and control logic follow the selected layout to match physical and virtual driving positions.
- Left- or right-hand-drive cockpit
- Viewpoint matched to the hardware
- Coordinated instruments and control logic
Basic control training
Steering, gears, accelerator, brake, parking brake and lights practice.

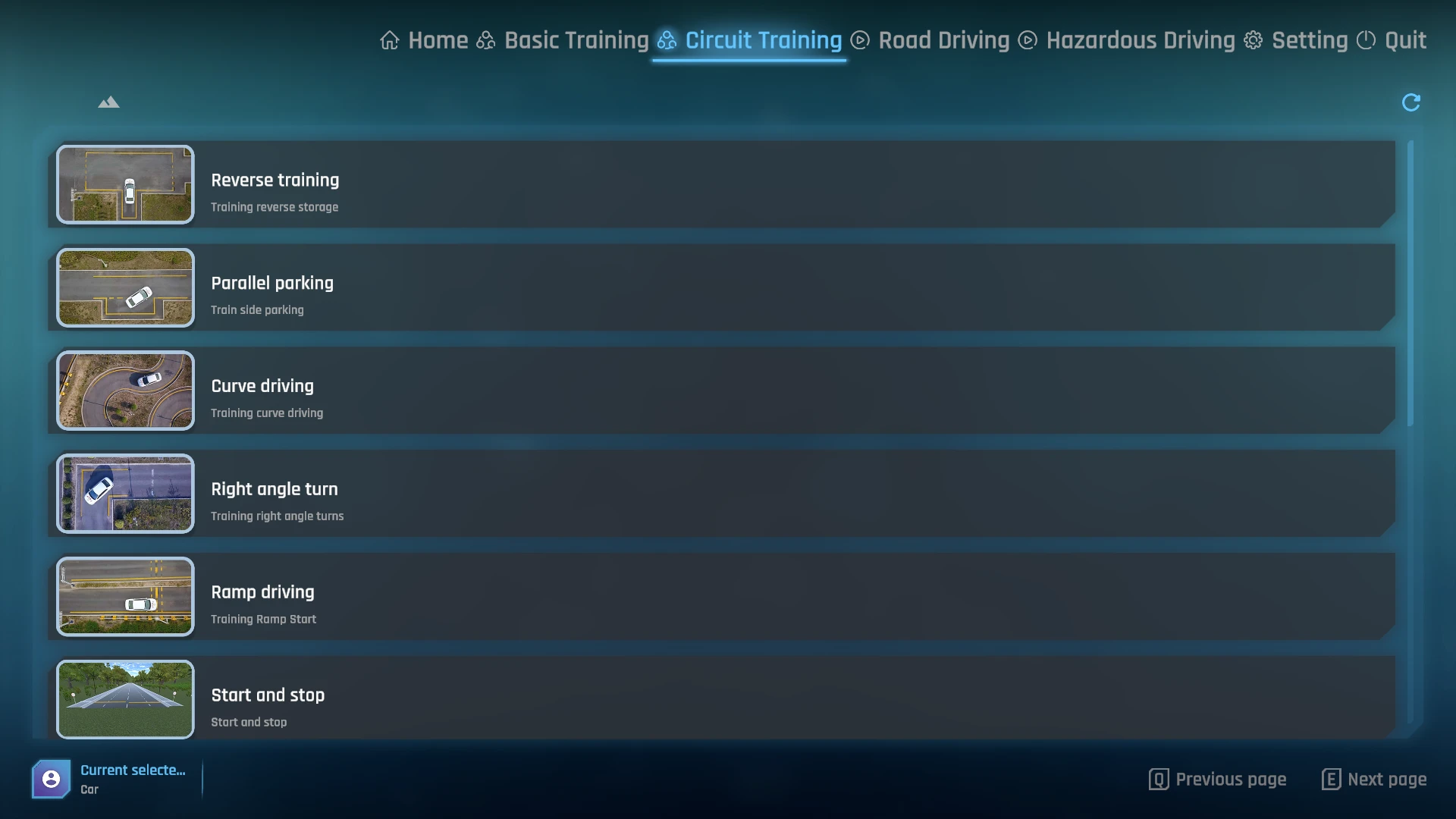

Manoeuvring exercises
Automatic-compatible exercises include reverse and parallel parking, curves, right-angle turns, hill starts, narrow gates, manholes, uneven roads and single- or double-sided bridge exercises.
Road and weather environments

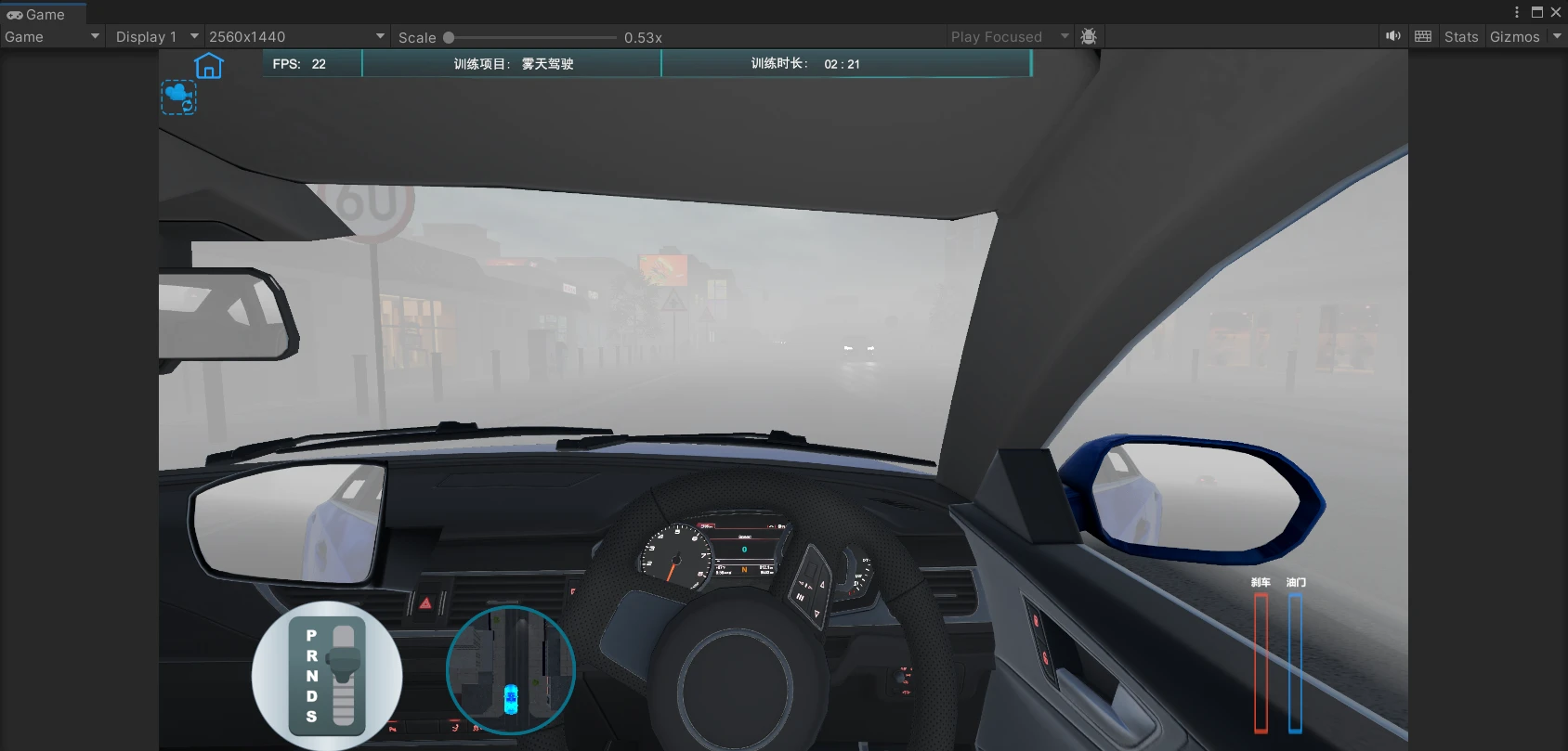

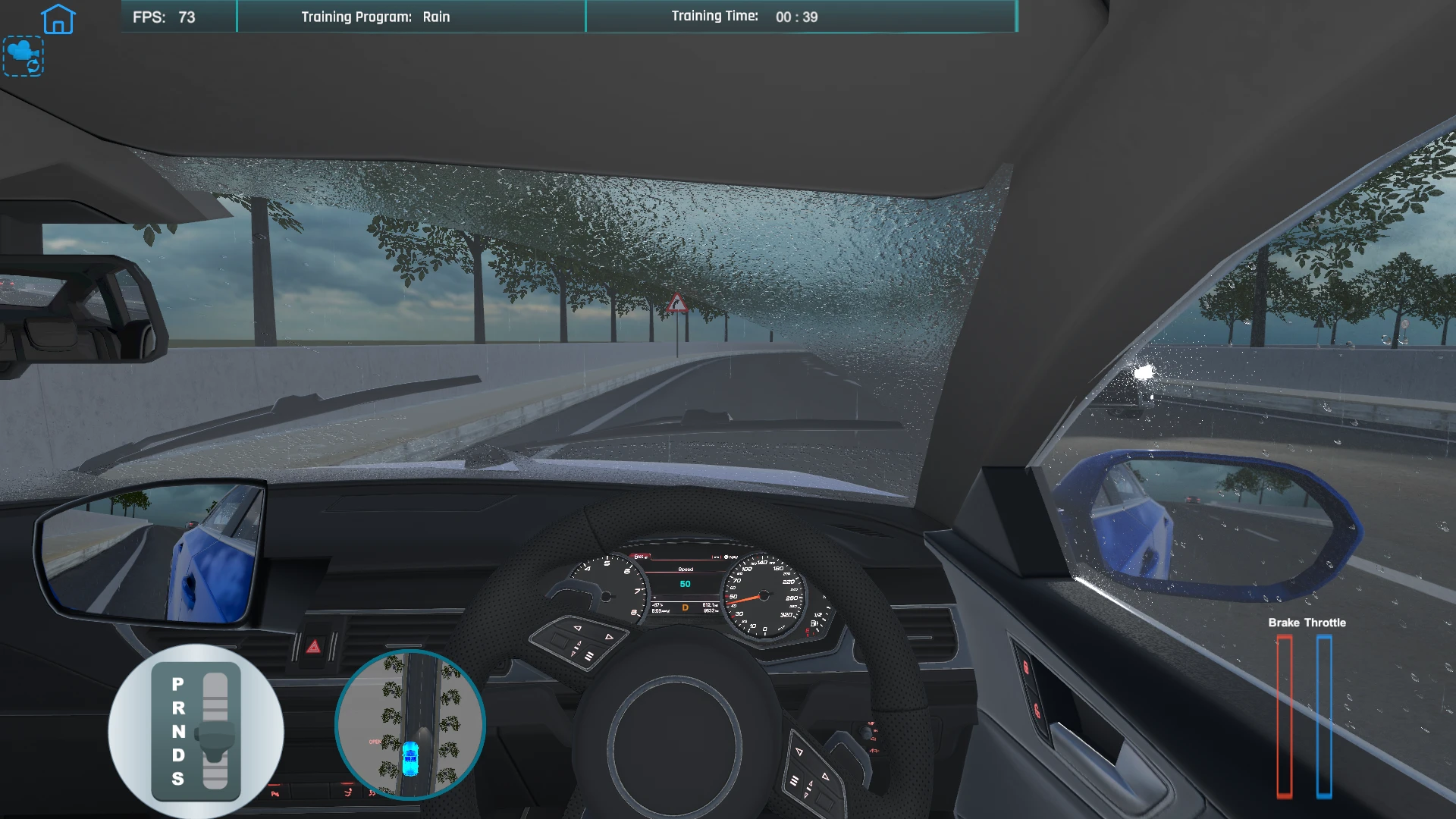

Town, city, motorway, mountain and gravel roads; night, rain, snow, fog and day/night changes, with corresponding weather effects.

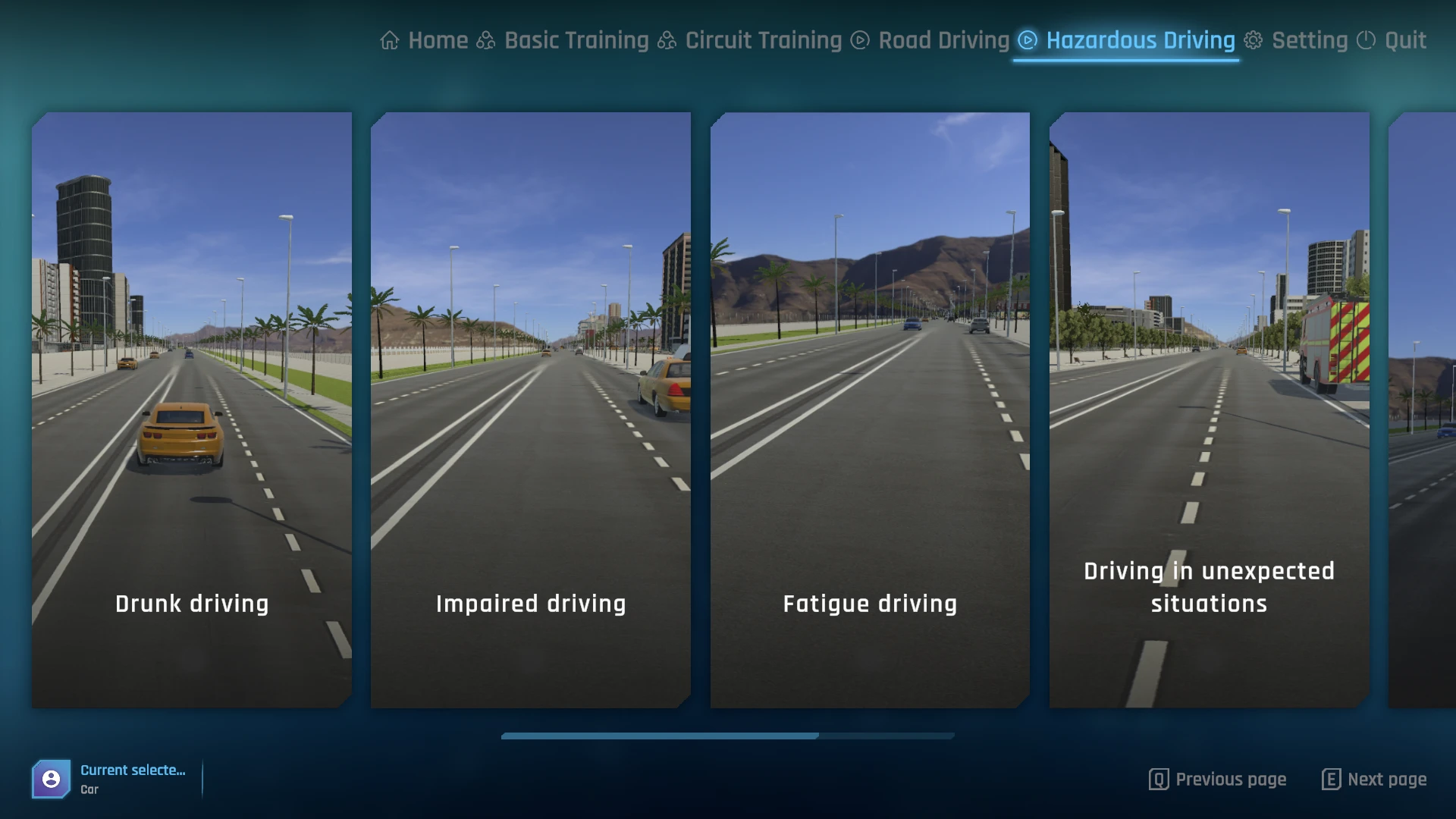

Hazard and emergency training
Scenarios include alcohol and drug impairment, fatigue, speeding, brake failure, unexpected events, noise distraction, traffic direction and yielding to ambulances.

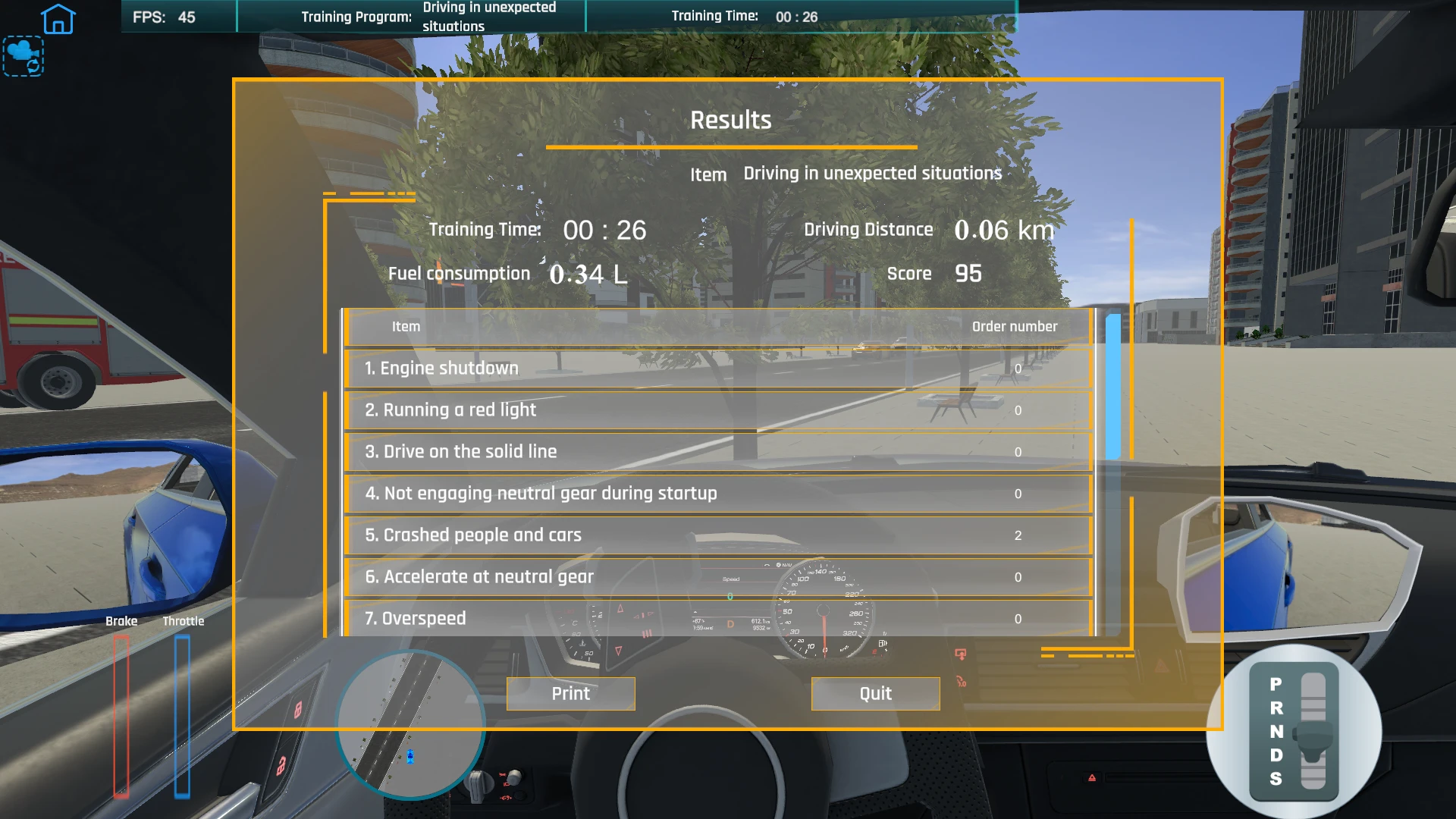

Scoring and training results
Detect red-light violations, lane crossings, collisions, speeding, unfastened belts, unreleased parking brakes and harsh acceleration or braking; record exercises, distance, fuel use, scores and errors.
Result storage and printing
Results can be saved locally and printed. Local file formats depend on the delivered software version.
Driver assistance
Single- or triple-screen support, dual mirrors on one screen, live pedal and gear indicators, mini-map and point-to-point navigation and route checks.
Languages and system extensions
One interface language is preinstalled: English, Arabic, Spanish, Romanian or Ukrainian, selected when ordering. The 3DOF platform is standard; VR and an instructor workstation are optional.
This page shows only a selection of software features and interfaces. Features may be added or modified in future software versions. The delivered software version and feature set are subject to the order confirmation.
Screens show shared driving software. Gear and pedal indicators and exercises for automatic transmission depend on the delivered version.
OPTIONAL SYSTEM

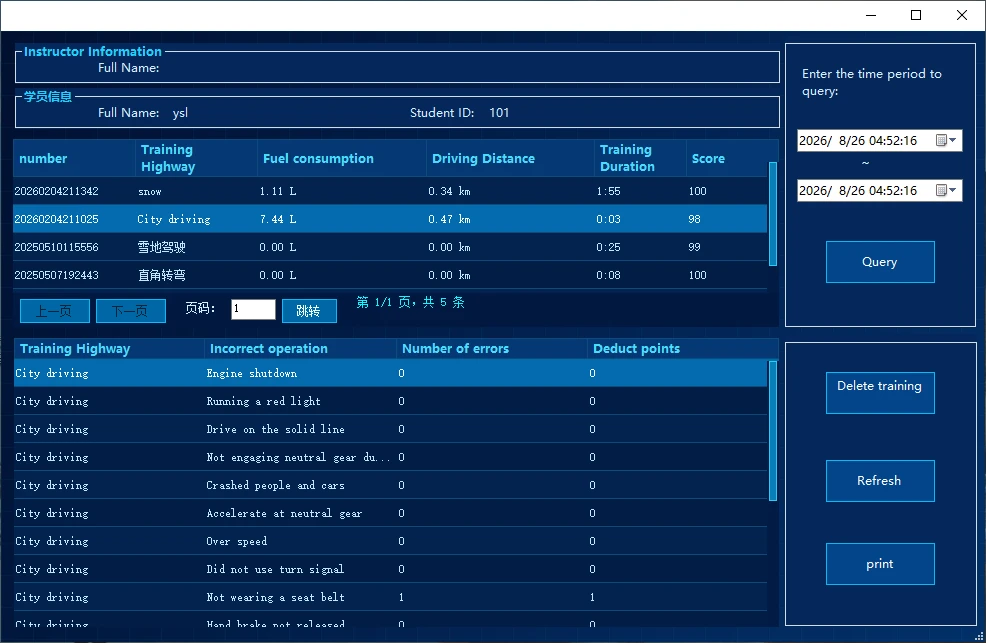

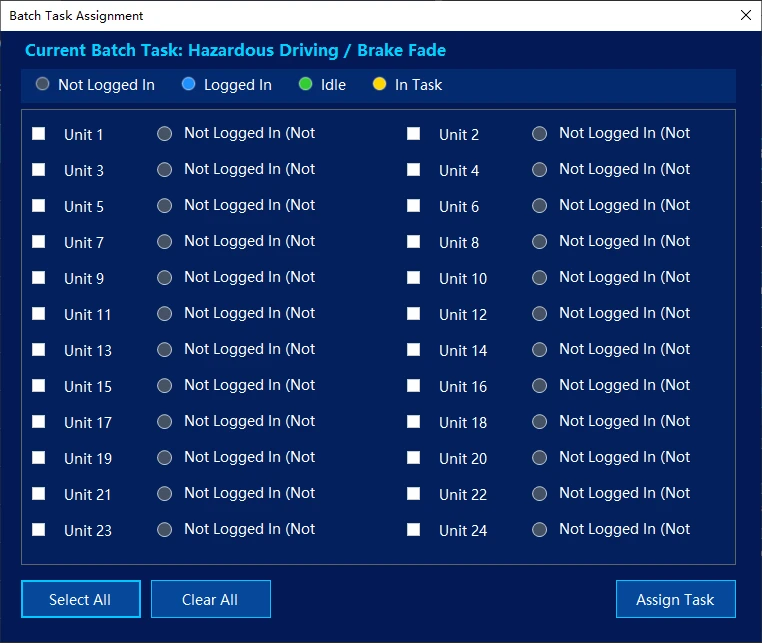

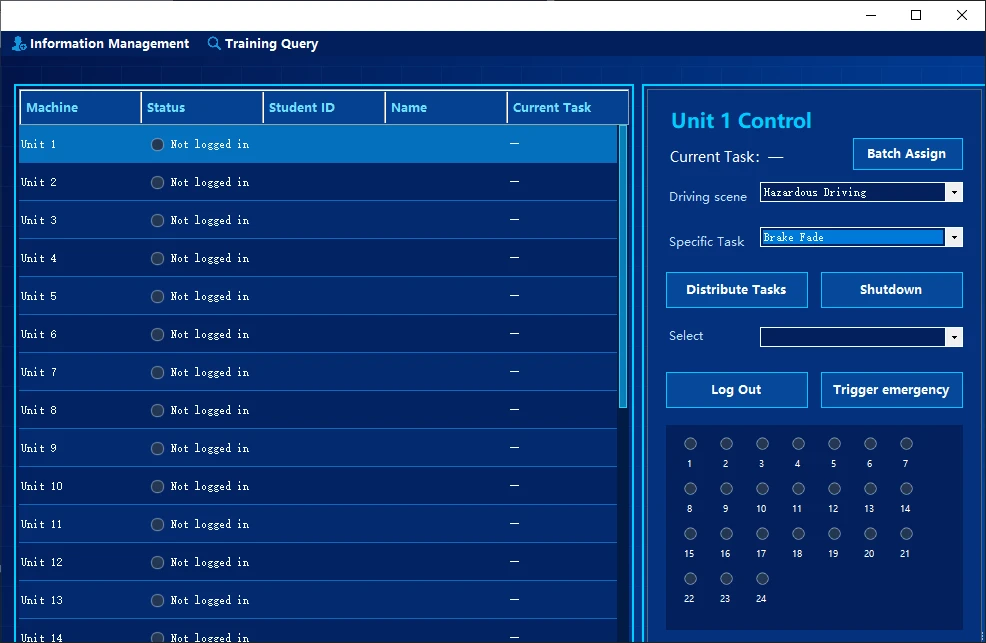

Instructor workstation interface
Monitor terminal status, assign tasks to one or several simulators and review learner results and errors. Functions and terminal capacity are confirmed by project.
Vehicle types, languages, display arrangements and extensions are confirmed with the order. Custom features, timescales and fees depend on project requirements.
05

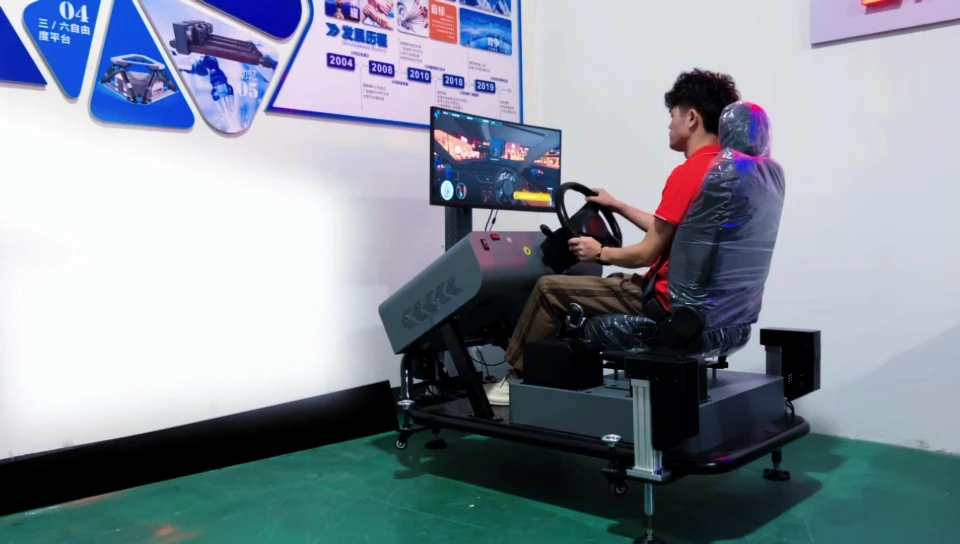

REAL PRODUCT DETAILS

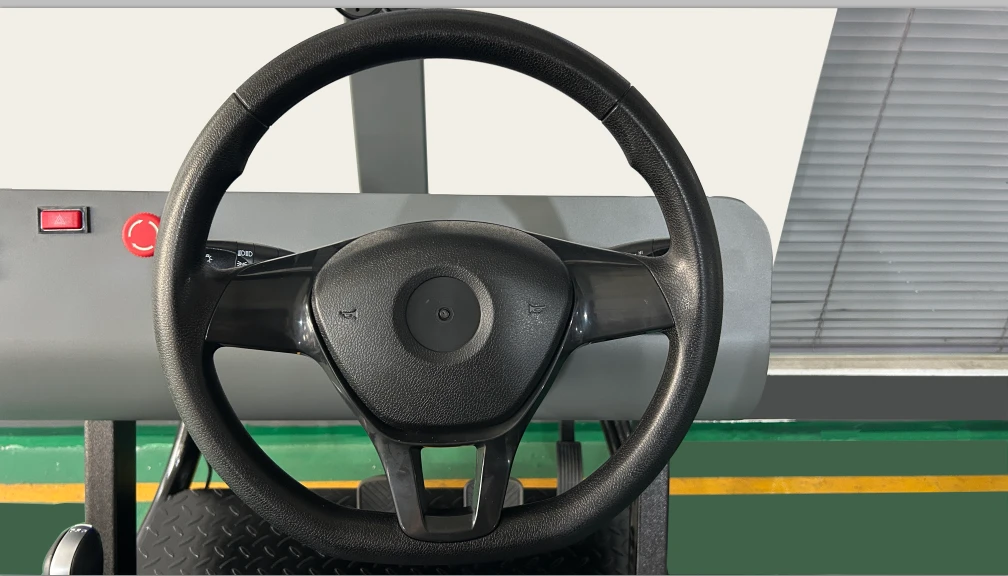

Real equipment and physical controls.
Click an image to view the original.

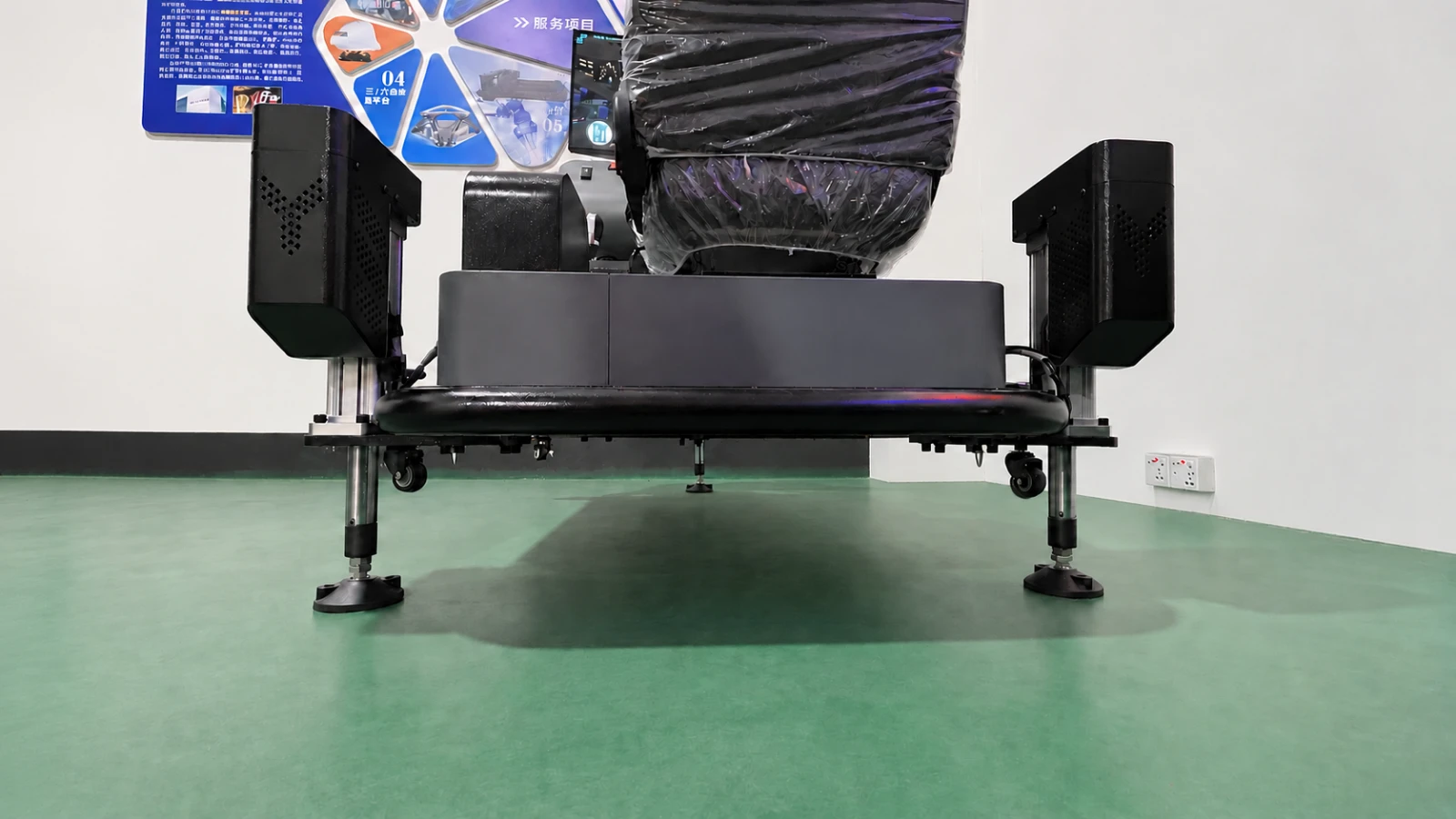

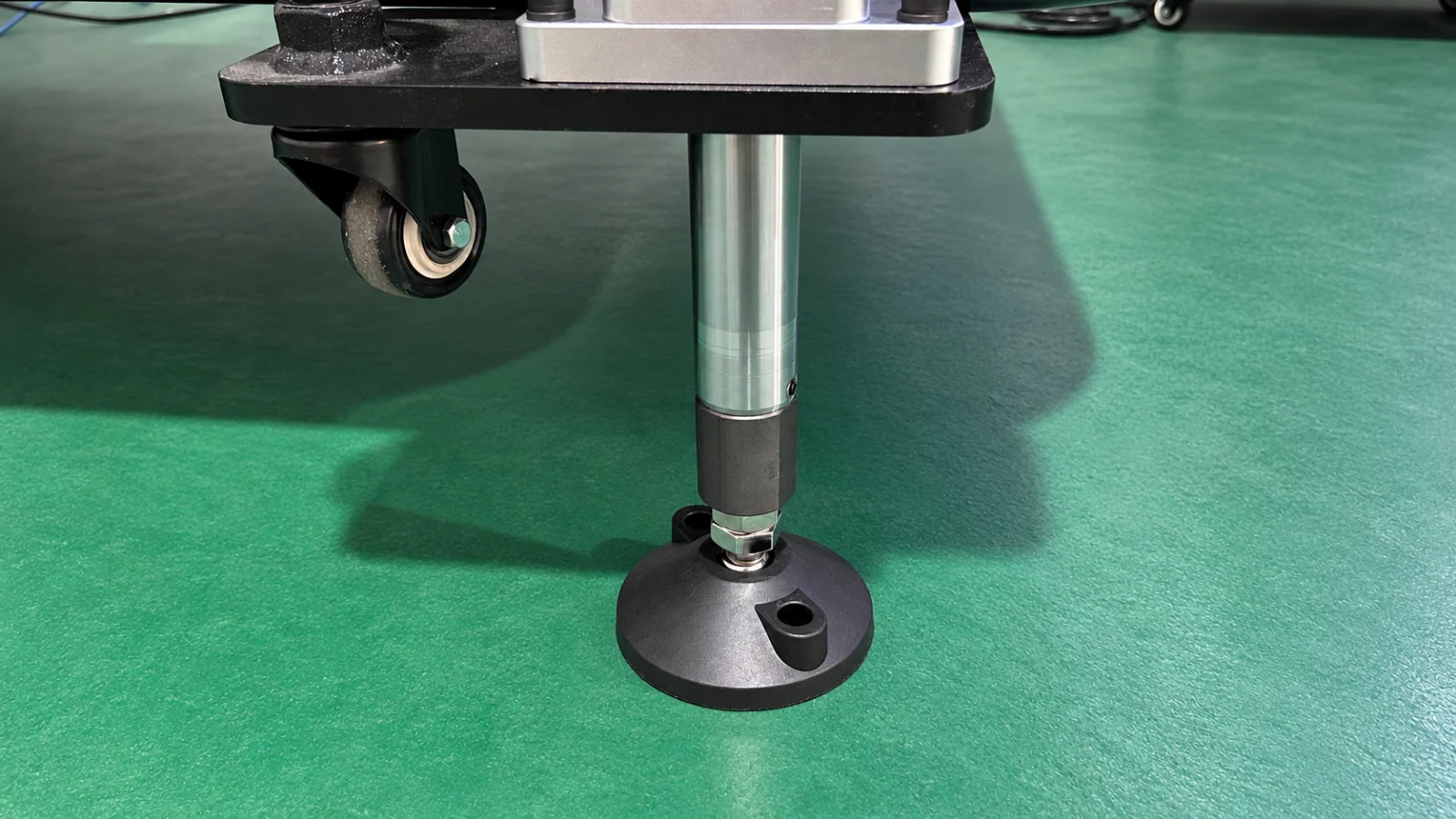

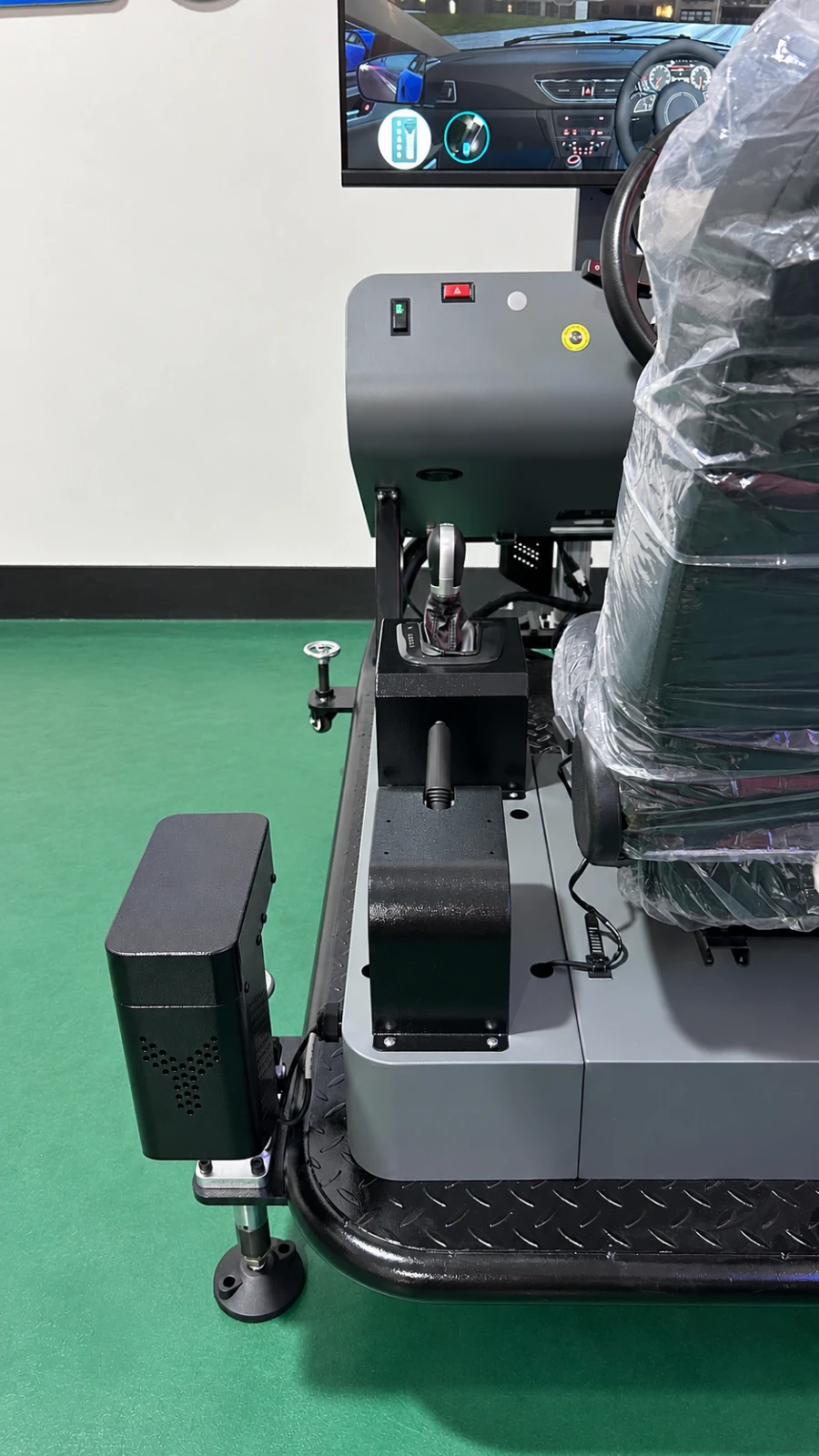

3DOF platform details
06
TECHNICAL DATA
YSL-CAR-C34-A-3DOF — Specifications and configuration
| Standard specificationsDefault delivery scope for this model | |
|---|---|
| Vehicle class | Car / passenger-vehicle driver training |
| Product form | Static:fixed base without motion feedback.Dynamic:A motion platform provides attitude and motion feedback; this model uses 3DOF. |
| Display system | 34-inch curved display |
| Standard colour | Black + grey; other colours can be customised by project and confirmed with the order |
| Overall dimensions | Drawing dimensions: length 1571.5 × width 1055 mm; top of display 1231.9 mm Tolerance: ±10 mm. Height is measured to the point shown on the drawing; seat-top height, total height and operating clearance require confirmation. |
| Net equipment weight | Approx. 175 kg |
| Packing dimensions / gross weight | Wooden crate approx. 1700 × 1150 × 1420 mm (L × W × H); gross packed weight approx. 275 kg Crate weight approx. 100 kg; gross weight is calculated from approx. 175 kg net equipment weight plus the crate. |
| Power supply and maximum consumption | Standard input: AC 220 V (±10%), 50 Hz; maximum consumption 2.85 kW including the 3DOF platform AC 110 V is available by project; voltage, frequency and final configuration are confirmed in the order specification. |
| Computer configuration | Intel Core i5-6500; Gigabyte H110M-S2PH; GTX 1660 6 GB; 8 GB RAM; 128 GB SSD Reference configuration. Brands or models may change with availability; replacements will provide equivalent or better performance, subject to the final order specification. |
| Pre-installed software language | One software interface language is preinstalled: English, Arabic, Spanish, Romanian or Ukrainian. Select the language at order confirmation. |
| Steering force feedback | DC motor force feedback as standard; servo motor force feedback optional |
| Steering wheel rotation | From centre: 540° left and 540° right (1.5 turns each); total rotation 1080° |
| Gear control | Automatic transmission Automatic transmission is standard; manual transmission can be requested. Confirm the gear configuration with sales when ordering. |

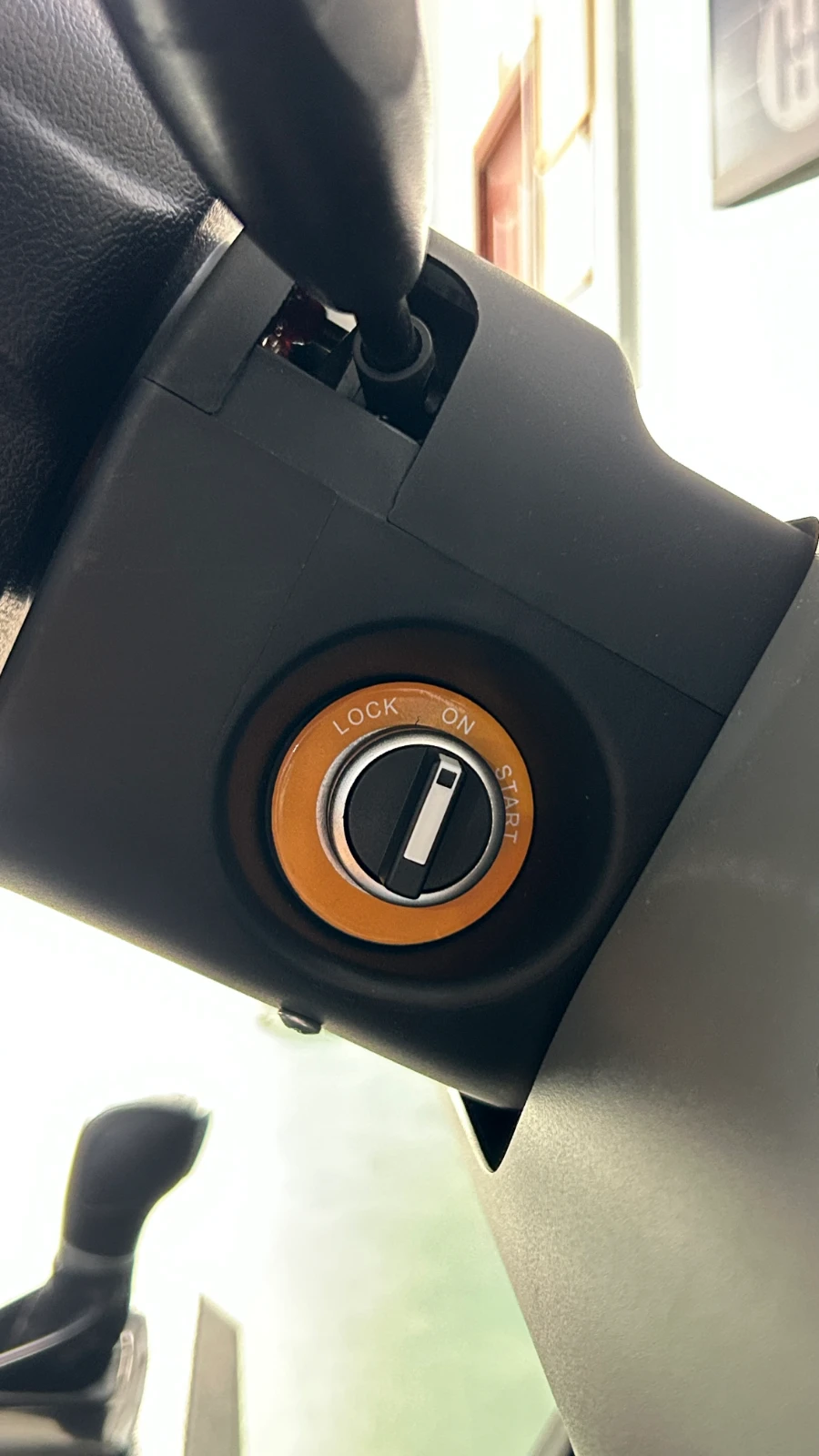

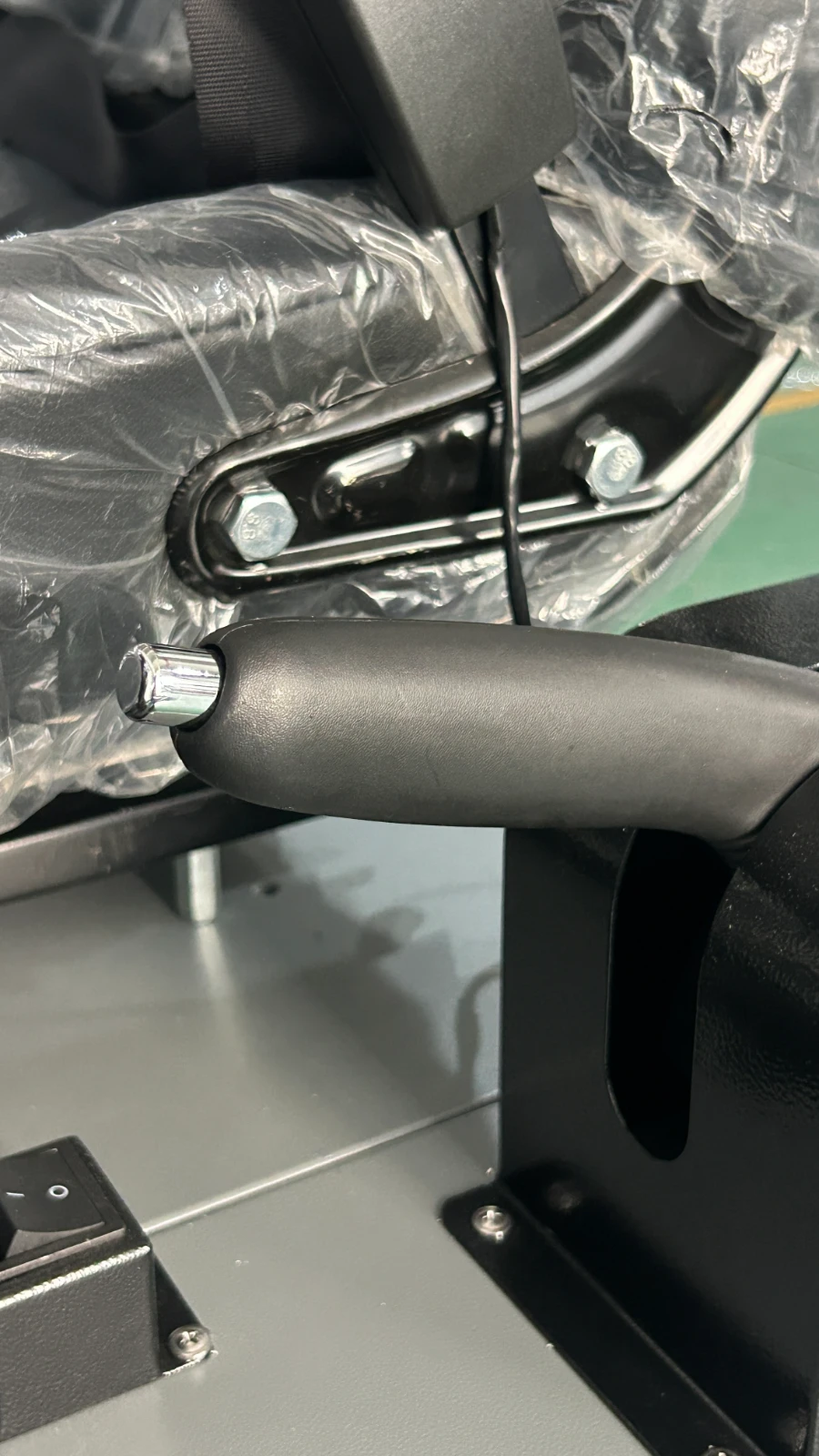

| Physical controls | Car steering wheel, pedal assembly, automatic selector, parking brake, ignition and combination switches Automatic training uses the brake and accelerator. Confirm the physical pedal assembly with the order. |
| Operating environment | 0–35 °C; 20%–80% RH, non-condensing |
| 3DOF motion specificationsMotion configuration for this model | |
| Payload | 150 kg |
| Heave travel / speed | ±75 mm / 250 mm/s |
| Pitch angle / speed | ±5° / 10°/s |
| Roll angle / speed | ±5° / 10°/s |
| Motion drive | Servo-driven electric actuators coordinate platform motion |
| Optional extensionsNot included as standard; confirmed by project | |
| Servo motor steering force feedbackOptional | Optional servo motor steering force feedback; the standard configuration uses a DC motor |
| VR headsetOptional | VR headset and display solutions available by project; models, software compatibility and scope are confirmed for the application |
| Instructor workstationOptional | Instructor workstation available by project; hardware, management functions and terminal capacity are confirmed for each order |
| Software customisationOptional | Software customisation available; features, lead time and cost are agreed for each project |
07
DELIVERY & SUPPORT
Production, export packing and remote support.
Production lead time
Usually about 2–3 weeks after payment, subject to the confirmed order and configuration.
Export packing
One export wooden crate per unit; see the specifications for packed dimensions and gross weight.
Factory testing
Software, hardware and overall operation are checked before dispatch.
Installation and training
A user manual is supplied. Remote installation guidance and operator training can be provided when required.
Warranty and upgrades
One-year hardware warranty. Standard new software features may be upgraded free of charge; confirm applicable conditions with sales.
Remote diagnostics
Remote troubleshooting assistance is available; overseas on-site service is not currently provided.
Product documentation
YSL-CAR-C34-A-3DOF
Download product information matching this page’s configuration, specifications and software description.
PROJECT ENQUIRY
Tell us about your training goals and configuration.
Share the country of use, learner group, quantity, display arrangement and any instructor workstation, VR or custom requirements.
Request configuration and pricing
